產品描述

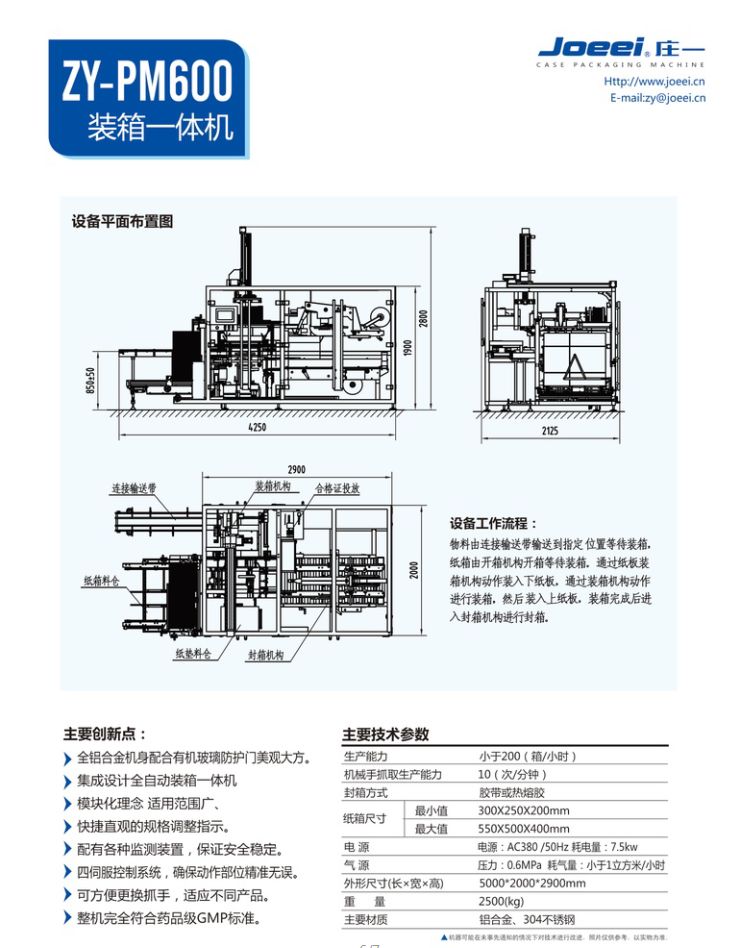

設備工作流程：
物料由連接輸送帶輸送到指定位置等待裝箱,紙箱由開箱機構開箱等待裝箱。通過紙板裝箱機構動作裝入下紙板,通過裝箱機構動作進行裝箱,然后裝入上紙板,裝箱完成后進入封箱機構進行封箱。
Equipment workflow: The materials are transported to the designated position by the connecting conveyer belt to wait for packing, and the cartons are unpacked by the unpacking mechanism to wait for packing. The lower cardboard is loaded through the action of the cardboard packing mechanism, the lower cardboard is loaded through the action of the packing mechanism, then the upper cardboard is loaded, and after the packing is completed, the upper cardboard enters the box sealing mechanism to seal the box.
主要創新點:/ Major innovations:
全鋁合金機身配合有機玻璃防護門美觀大方。
All aluminum alloy fuselage with plexiglass door is beautiful and elegant.
集成設計全自動裝箱一體機。
Integrated design of fully automatic packing machine.
模塊化理念適用范圍廣。
The concept of modularization has a wide range of applications.
快捷直觀的規格調整指示。
Quick and intuitive specification adjustment instructions
配有各種監測裝置,保證安全穩定。
Equipped with various monitoring devices to ensure safety and stability.
四伺服控制系統,確保動作部位精準無誤。
Four servo control systems to ensure accurate action parts.
可方便更換抓手,適應不同產品。
The gripper can be changed conveniently to adapt to different products.
整機完全符合藥品級GMP標準。
The whole machine completely conforms to the GMP standard of pharmaceutical grade.
主要技術參數/Main technical parameters
小于200(箱/小時)/ Less than 200 (boxes/hour)
生產能力/Production capacity
10(次/分鐘)/ 10 (times/minute)
機械手抓取生產能力/Manipulator grab production capacity
膠帶或熱熔膠/Adhesive tape or hot melt adhesive
封箱方式/Sealing method
紙箱尺寸/Carton size
300X250X200mm/300X250X200mm
最小值/ Minimum value
550X500X400mm/550X500X400mm
最大值/Maximum value
電源:AC380/50Hz耗電量:7.5kw/Power Supply: AC380/50Hz Power
電源/Power supply
壓力:0.6MPa耗氣量:小于1立方米/小時/Pressure: 0.6MPa air consumption: less than 1 cubic meter/hour
氣源/air supply
外形尺寸(長x寬x高）/Overall dimensions (length x width x height)
5000*2000*2900mm/5000*2000*2900mm
重量/Weight
500（kg)/ 500（kg)
鋁合金、304不銹鋼/Aluminum alloy, 304 stainless steel
主要材質/Main material
▲機器可能在未事先通知的情況下對技術進行改進,照片僅供參考,以實物為準。
▲ The machine may improve the technology without prior notice. The photos are for reference only and subject to the actual objects.
