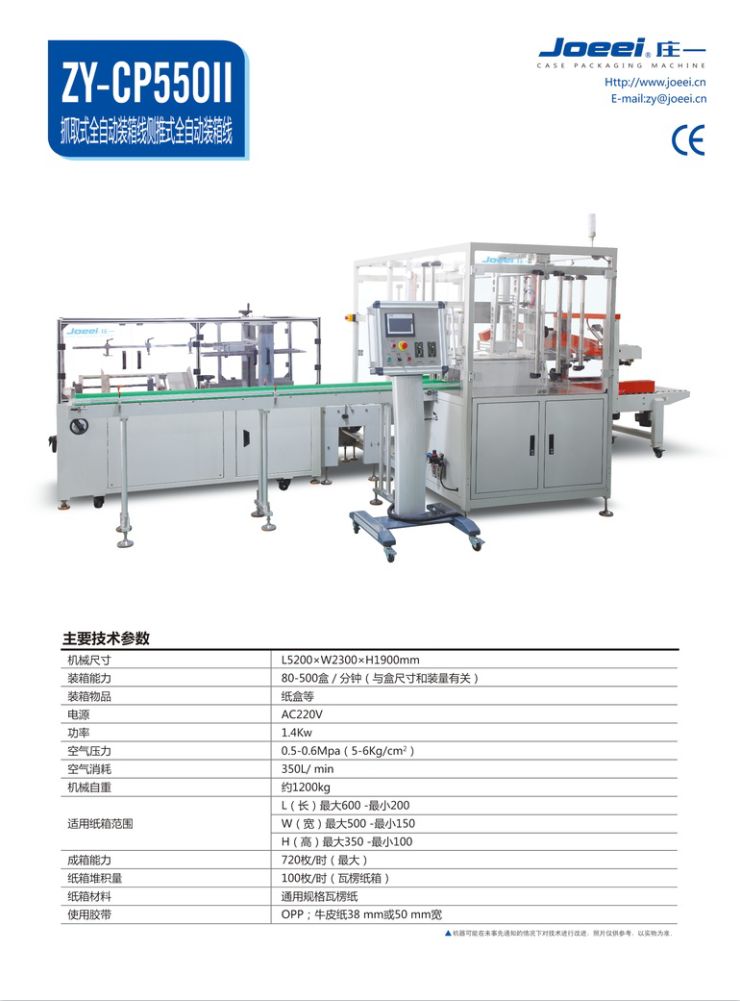

ZY-CP550I抓取式全自動裝箱線
ZY-CP550I抓取式全自動裝箱線,整線自動完成開箱-裝箱-封箱有效降低人工成本，具有單機獨立調試與生產控制、操作界面產量計數、機器運行速度調整及設備故障等數字、中文顯示與提示；具有各個工位實時檢測監控，故障報警、停機和急停等安全保護功能；抓取式裝箱可以適用各種產品裝箱，如瓶子、盒子、袋子等各種規整產品，適用性廣泛；裝箱線可應用于食品、醫藥、日化、飲料等行業。
所屬分類：
產品中心
裝箱機系列
產品附件：
咨詢熱線：
產品描述
抓取式全自動裝箱線/Grabbing type full-automatic packing line
主要特點：Main features:
- 整線自動完成開箱-裝箱-封箱有效降低人工成本;
1. The whole line automatically completes unpacking, boxing and sealing to effectively reduce labor costs;
2.側推/抓取式裝箱,整齊碼垛塊狀物體穩定可靠;
2. Side push packing, neat stacking of massive objects is stable and reliable;
3.碼垛規格和紙箱規格尺寸變化時可進行方便、準確、快速調整;
3. The stacking specifications and carton specifications can be adjusted conveniently, accurately and quickly when the sizes change;
4.具有單機獨立調試與生產控制、操縱屏界面產量計數、機器運行速度調整及設備故障等數字、中文顯示與提示；
4. It has digital and Chinese display and prompt such as independent debugging and production control of single machine, output counting of operation screen interface, adjustment of machine operation speed and equipment failure.
5.具有紙箱質量和紙箱儲量檢測監控,故障報警、故障停機與緊急停機等安全保護功能;
5. It has the safety protection functions of carton quality and carton storage detection and monitoring, fault alarm, fault shutdown and emergency shutdown, etc.
6.裝箱順暢,不損傷紙箱外觀,成品紙箱外觀完好、整潔,外觀合格.
6. The packing is smooth and does not damage the appearance of the carton. The finished carton is intact, neat and qualified in appearance.
主要技術參數/Main technical parameters
機械尺寸/Mechanical dimensions
裝箱能力/Packing capacity
裝箱物品/Packing articles
電源/Power supply
功率/Power
空氣壓力/air pressure
空氣消耗/Air consumption
機械自重/Mechanical weight
適用紙箱范圍/Applicable carton range
成箱能力/Container capacity
紙箱堆積量/Stacking capacity of cartons
紙箱材料/Carton material
使用膠帶/Use adhesive tape
L5200xW2300xH1900mm/L5200xW2300xH1900mm
80-500盒/分鐘(與盒尺寸和裝量有關)/ 80-500 boxes/min (related to box size and quantity)
紙盒等/Cartons, etc
AC220V/AC220V
1.4Kw
0.50.6Mpa(5-6Kg/cm)
350L/ min
約1200kg/About 1200kg
L(長)最大600-最小200/L (length) max 600- min 200
W(寬)最大500-最小150/W (width) max 500- min 150
H(高)最大350-最小100/H (high) max 350- min 100
720枚/時(最大)/ 720 pieces/hour (maximum)
100枚/時(瓦楞紙箱)/ 100 pcs/hr (corrugated box)
通用規格瓦楞紙/General specification corrugated paper
OPP;牛皮紙38mm或50mm寬/OPP; Kraft paper 38mm or 50mm wide
▲機器可能在未事先通知的情況下進行技術改造,照片僅供參考,以實物為準。
▲ The machine may undergo technical transformation without prior notice. The photos are for reference only and subject to the actual objects.
